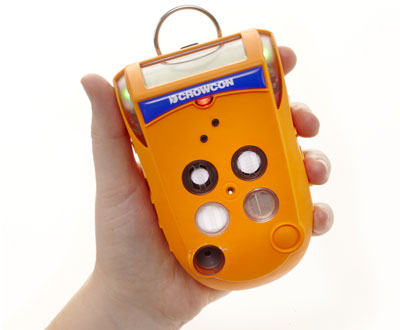

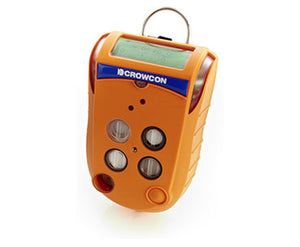

Gas Pro 4 Gas Monitor (Carbon Monoxide / Hydrogen Sulphide / Oxygen / Methane)
Original price
$850.00
-
Original price
$850.00
Original price
$850.00
$850.00
-
$850.00
Current price
$850.00
| /
Gas-Pro is a confined space entry monitoring solution for workers and fleet managers, and is now supported by the I-Test bump test and calibration station.
Overview
Offering detection of up to 5 gases in a compact and rugged solution, Gas-Pro has an easy-to-read top mount display combining ease of use and user focused features. An optional internal pump, activated with the flow plate, takes the pain out of pre-entry testing and allows Gas-Pro to be worn either in pumped or diffusion modes.
User Friendly
-

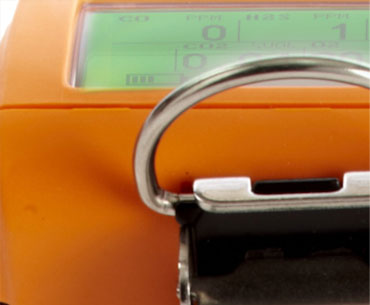

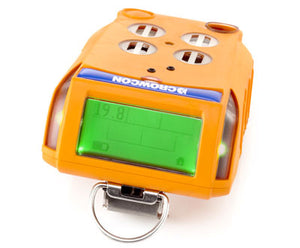

Top mount display – makes it easy to read at a glance
-
Simple single button operation – reduces training time
-
Intuitive functionality – can be used whilst wearing gloves
Adaptable
-
Monitor 5 gases from many different options – detect gases such as Hydrogen Sulphide, Carbon Monoxide and Oxygen Depletion while offering multiple uses within one compact detector
- Pumped and diffusion solutions
- Multiple languages
-
Automatic fail-safe flow plate recognition – takes away the pain of pre-entry testing
- Specific and unique Pre-Entry Check (PEC) mode
Reliable
-
Reliable lithium-ion battery – provides over 14 hr use from a 7.5 hr charge
-
Water and dust resistant to IP65 and IP67 – capable of withstanding harsh environments
-
Bump and calibration reminders – Full compliance
Specifications
Size |
43 x 130 x 84mm (1.7 x 5.1 x 3.3ins) |
Weight |
309g 4 gas (10.8oz)/ 340g pumped (11.9oz)333g 5 gas (11.7oz)/ 362g pumped (12.7oz) |
Alarms |
Audible >95dB @ 30cm (98dB @30cm in loud mode) Visual – all angle dual red/blue LEDs Vibrating alert |
Display |
Top mount for ease of view with dual colour backlight (green/red) |
Data logging |
125hr at 10-second intervals (45,000 logs) |
Event logging |
Alarm, over range, calibration, bump, on/off, TWA, 1000 events |
Battery |
Rechargeable Li-ion, >14hr (13 hours pumped operation) based on CH4, O2, H2S, CO Typical charge time 7.5hr
|
Sampling |
Internal pump as option |
Operating temperature |
-20°C to +55°C (-4°F to +131°F) |
Storage |
-25°C to +65°C (-13°F to +149°F) |
Humidity |
10 to 95% RH+ |
Ingress protection |
Independently tested to IP65 and IP67 |
Approvals |
IECEx: Ex db ia IIC T4 Gb Tamb -20°C to +55°C ATEX: II 2 G Ex db ia IIC T4 Gb Tamb -20°C to +55°C UL: Class 1, Division 1, Groups A, B, C, and D UL 913, UL 60079-0 and UL 60079-11 INMETRO: Ex db ia IIC T4 Gb Tamb -20°C to +55°C Marine Equipment Directive: MED 1500009 |
Compliance |
FCC and CE. Complies with EMC Directive 2014/30/EU, EN50270 and EMC FFC CFR 47 Part 15, ICES-003 |
Interface |
Data connection for gas test solutions and direct to PC |
Charging |
Direct connection to multi-regional power supply Vehicle charger adaptor Desktop cradle USB power and communications lead
|
Crowcon Connect Compatible? |
Yes |
Gases and Ranges
Gas |
Range |
Typical Alarms |
Resolution |
Ammonia (NH3) |
0-100ppm |
25ppm |
1ppm |
Carbon dioxide (CO2) |
0-5% vol. |
0-5% vol. |
0.01% vol. |
Carbon monoxide (CO) |
0-2000ppm |
30ppm |
1ppm |
Carbon monoxide (CO) |
0-500ppm |
30ppm |
1ppm |
Carbon monoxide (hydrogen filtered) |
0-2000ppm |
30ppm |
1ppm |
Chlorine (Cl2) |
0 – 5ppm |
0.5ppm |
0.1ppm |
Dual toxic (CO-H2S) |
H2S 0-100ppm CO 0-500ppm |
5ppm 30ppm |
1ppm 1ppm |
Flammable |
0-100% LEL |
20% LEL |
1% LEL |
Hydrogen sulphide (H2S) |
0-100ppm |
5ppm |
1ppm |
Nitrogen dioxide (NO2) |
0-20ppm |
1ppm |
0.5ppm |
Oxygen (O2) |
0-25% vol. |
19.5% / 23.5% vol. |
0.1% vol. |
Ozone (O3) |
0-1ppm |
0.1ppm |
0.01ppm |
Sulphur dioxide (SO2) |
0-20ppm |
1ppm |
0.1ppm |
Chlorine dioxide (ClO2) |
0-1ppm |
0.1ppm |
0.1ppm |
Nitric oxide (NO) |
0-100ppm |
25ppm |
1ppm |
